Lobachevskii Journal of Mathematics Vol. 13, 2003, 15 – 24

©M.A.Ignatieva and A.V.Lapin

ABSTRACT. We construct a mixed hybrid finite element scheme of lowest order for the Stefan problem with prescribed convection and suggest and investigate an iterative method for its solution. In the iterative method we use a preconditioner constructed by using ”standard” finite element approximation of Laplace operator on a finer grid.

The proposed approach develops the results of [1], where a spectrally equivalent preconditioner for the condensed matrix in mixed hybrid finite element approximation for linear elliptic equation was constructed.

1. Introduction

Stefan problem with prescribed convection serves as a mathematical model for the heat transfer and solidification process in the metal casting (see [2, 3]). Commonly used numerical methods of its solving are based on the implicit or semi-implicit mesh approximations in time variable with lowest order finite element approximation in space variables [4, 5].

Because in the applied problems both the temperature fields and fluxes are of practical interest, mixed and mixed hybrid finite element schemes appear as important method for its numerical solution.

Mixed and mixed hybrid finite element schemes are thoroughly investigated for the linear boundary-value problems (cf. [6, 7] and bibliography therein), while a few publications have concern with these methods for nonlinear problems, especially for free and moving boundary problems. We construct a mixed hybrid finite element scheme for a Stefan problem which is a case of moving boundary problem.

The main purpose of the article is to suggest an effective iterative algorithm to solve this finite element scheme. We construct and investigate an iterative process with a preconditioner, the rate of convergence of this algorithm does not depend on the mesh size. On the other hand, the implementation of the iterative method reduces to the solution of a ”standard” finite-dimensional variational inequality, which can be made by using any of coordinate or gradient relaxation methods.

2. Mathematical model

Let Ω ⊂ ℝ2 be a domain with piecewise smooth boundary ∂Ω = ΓD ∪ ΓN. We consider the following nonlinear problem: find (u(x,t),θ(x,t)) such that

where n is the unit vector of outward normal, v = const > 0, z, g and θ0 are given functions. We consider the case when the graph of H : ℝ1 → ℝ1 monotonically increases and contains a vertical segment and suppose that the function H has a single values at points on ΓD.

Problem (1) can serve as a simplified model of continuous casting process, where u is the temperature of casting metal, θ(u) is the enthalpy function and v is the casting speed in x1 direction. The enthalpy function has a mentioned above property for example in the case of copper casting.

The existence and uniqueness of a weak solution for problem (1) are studied in [8, 9].

3. Semi-discretization

First, we introduce the semi-discretization of problem (1) using the characteristics of the first order differential operator and constant steps τ in time. Namely, if (x1,x2,t) is the point at the time level t we use the following approximation:

If x1 − vτ < 0 then we put x˜1 = 0.

After semi-discretization problem (1) on each time level can be formally written in the pointwise form as

where Pu = H(u)∕τ is the multivalued maximal monotone nonlinear operator and the right-hand side f = H˜(u)∕τ also arises due to semi-discretization.

Because of maximal monotonicity of function H and the property Dom(H) = ℝ the operator Pu is the subdifferential of convex continuous function ϕ(u). The weak formulation of problem (2) can be written in the form of variational inequality: find u(x) ∈ H1(Ω), u(x) = z(x) on ΓD such that

∀q ∈ H1(Ω), q(x) = z(x) on ΓD .

It is well known that (3) has a unique solution [10].

4. Mixed hybrid formulation of the problem

Now, let v = ∇u be so called flux function, then we get the following mixed formulation of (2):

Let H(div, Ω) = {w ∈ L2(Ω)n : div w ∈ L 2(Ω)} with the norm ∥w∥2 = ∫ Ω(∣w∣2 + ∣ div w∣2)dx, H(div, Ω) = {w ∈ H(div, Ω) : w ⋅ n ∈ L2(∂Ω)} with the norm ∥w∥H2 = ∥w∥2 + ∫ ∂Ω(w ⋅ n)2dΓ and subspaces HN(div, Ω) = {w ∈H(div, Ω) : w ⋅n̄ = g a. e. on ΓN}, HN0(div, Ω) = {w ∈H(div, Ω) : w ⋅ n = 0 a. e. on Γ N}. Now by a weak solution of problem (4) we mean a triple (u,v,σ) ∈ L2(Ω) ×HN × L2(Ω), such that

Note, that by construction if u is solution of (5) then (u,∇u,σ) is a solution of problem (5).

Let Ω ̄ = ⋃ i=1mē i be a partitioning of the domain into m nonoverlapping subdomains, where ei has a piecewise smooth boundary. Hereafter we suppose that the parts ΓD and ΓN of the boundary ∂Ω are composed by the whole sides ∂ei. The common sides of elements ei and ej we denote by Γij, where i≠j, i, j = 1,m¯. We suppose that ∂Ω consists of s segments, which we denote as Γ1,…, Γs. Let the intersections ∂ei with Γj,j = 1,s¯ be denoted by Γi,m+j, i = 1,m¯, j = 1,s¯ and let Γi,m+j for j = 1,s1¯, s1 < s compose ΓN , while Γi,m+k, i = 1,m¯, k = s1 + 1,s¯ compose ΓD .

Let further v = (v1,…,vm), u = (u1,…,um). Then system (4) can be written in the following form

where ni is the outward normal vector to ∂ei and nij is the unit normal vector to Γij directed from ei to ej. Let us note that in semi-discretized problem the flux function v ⋅ n is continuous in Ω though in initial differential problem flux may have a jump.

On the basis of (6) we define a weak mixed hybrid formulation of problem (2). Let U = ∏ 1≤i≤mL2(ei),V = ∏ 1≤i≤mH(div,ei) and Λ = ∏ i>jL2(Γij). We introduce the bilinear forms M : V × V → ℝ, B : U × V → ℝ, C : Λ × V → ℝ and D : U × U → ℝ by the following equalities

and linear functionals

The weak mixed hybrid formulation is as follows: find (u,v,λ,σ) ∈ U × V × Λ × U such that

where P̄u = (H(u1)∕τ,…,H(um)∕τ) for u ∈ U.

5. Approximation

Let further Ω be a polygonal domain and τh = {e1,e2,…,em} be its conforming triangulation [11]. We assume that all ei are convex polygons.

Let Uh,V h and Λh be finite element subspaces of the corresponding spaces

and refer to Λh as the space of vector-functions with constant components. Here V ih is a finite dimensional subspace in H(div,ei) of dimension ni consisting of vector-functions vi ∈H(div,ei) such that vi ⋅ nij is a constant on the corresponding interface Γij and Uih is a subspace of U consisting of vector-functions such that each its coordinate is a constant on each subdomain ei . The value of ni is equal to the total number of interfaces Γij belonging to the boundary of ei, i = 1,m¯. Thus, the dimension of V h is equal to n̂ = ∑ i=1mn i, the dimension of Uh is equal to m, and the dimension of Λh is equal to ň where ň is the total number of interfaces.

The finite element approximation of (7) reads as follows: find (uh ,vh, λh ,σh) ∈ Uh × V h × Λh × Uh satisfying the following relations:

Let now vij be the degrees of freedom for vector-function vih, associated with Γij, ui be the degrees of freedom for the function uh, associated with ei, and λij be the degrees of freedom for λh, associated with Γij ,j > i. The algebraic formulation of (8) is: to find (v̄,ū,λ̄,σ̄) such that

∀(w̄,q̄,μ̄) ∈ ℝn̂ × ℝm × ℝň. Here

are the bilinear forms on ℝn̂ × ℝn̂, ℝm × ℝn̂, ℝň × ℝn̂ and ℝm × ℝn̂, respectively, and

are linear forms defined on ℝň, ℝm and ℝň .

The entries mk,l(i) of matrices Mi are defined by the standard way using the L2(ei) scalar products of the nodal basis functions of the subspaces V ih.

In matrix-vector form problem (9) can be written as follows:

We rewrite the system as

and eliminate v̄ from the system. After that we obtain a reduced system which can be written in block form by

Using notations

we finally obtain the following finite-dimensional problem:

Note that Schur complement matrix S is a symmetric and positive definite matrix [1], while P ˜ is a maximal monotone operator. Owing to this fact problem (12) has a unique solution, whence problem (11) has also a unique solution.

6. Iterative method

For the sake of simplicity we analyze only the case of rectangular meshes. We suppose that Ω is the unit square and construct mesh with step h in both directions which defines the partitioning of Ω into elements ei.

To obtain preconditioner for (12) we construct finer grid in Ω with the step h∕2. We denote by τh∕2 the new partitioning of Ω. Let further W h∕2 be the piecewise finite element subspace of H1(Ω) and A be the stiffness matrix, corresponding to the approximation in this subspace of Laplace operator with Dirichlet boundary conditions on ΓD . Let the nodes of τh∕2 consist of two groups: the first group contains the nodes of τh , while the second one contains all others (called by the fictitious ones). Then matrix A can be represented in the corresponding block form:

It is shown in [1] that the operator S is spectrally equivalent to the Schur complement SA :

with constants of equivalence which do not depend on mesh size:

In the case under consideration we get α = 1, β = 6.

This observation allows us to use the matrix SA as a preconditioner in iterative process for solving (12):

The following statement is valid.

To avoid the explicit calculation of SA on each step of process (13) we use the following trick. We complete the system (12) by the equations in fictitious nodes, so that the algebraic size of resulting system

is equal to number of fine grid nodes. After we write iterative process with operator A as a preconditioner for this system using block representation of A:

where μ˜ are fictitious components. Eliminating from the second equation fictitious values we can verify that it is an equivalent form of process (13) for solving (12) with SA as preconditioner.

For a fixed n problem (14) is the finite element variational inequality with positive definite and symmetric matrix A, so, it can be solved, for example, by using any coordinate relaxation or gradient relaxation method.

On each step of constructed method we need to calculate F − Sμ. It is easy to do if we take into account the identity

with v̄n = M−1(r̄ − BT ūn − CT λ̄n).

Thus, to solve (14) we get the the following
Algorithm

1. Define μ0 = (ū0,λ̄0).
2. For n ≥ 0 on each element ei calculate v̄n by formula v̄in = M i−1(r̄ i − BiT ū in − CT λ̄ in).

3. Calculate μn+1 = (ūn+1,λ̄n+1) by solving (14).
4. n := n + 1 goto step 2.

7. Numerical results

In numerical test we take Ω = (0, 1) × (0, 1), ΓD = {(x1,x2) ∈ ∂Ω : x2 = 0}∪{(x1,x2) ∈ ∂Ω : x2 = 1}, ΓN = ∂Ω ∖ ΓD. We solve problem in time interval [0,1] using constant time step τ = 0.05 and various grids in space to compare number of iterations. As H we take the function

On the top of square Ω we put g = −3 in the boundary condition, on bottom we use value g = 0, on the left side z = 2, and on the right side z = −1. As initial condition we take u0 = −1.

To solve inequality with matrix A on each step of iterative process (14) we use SOR-method, the stopping criterion was ∥μk+1 − μk∥≤ 10−13 and the stopping criterion of outer process was ∥μn+1 − μn∥≤ 10−12. As iterative parameter in outer process we take τ = 2∕7, which we get using estimates of equivalence of matrices S and SA .

In the second column of table 1 we show the number of iteration which we need to solve problem on the first time level (on the next levels the number of iterations becomes smaller) and in the third column – the total number of iteration, which is equal to the sum of iterations on all time steps. From the table we can see that the number of iterations does not depend on mesh size.

On the figures we show temperature distributions at several time levels.

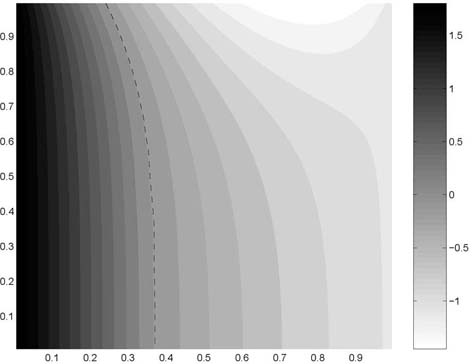

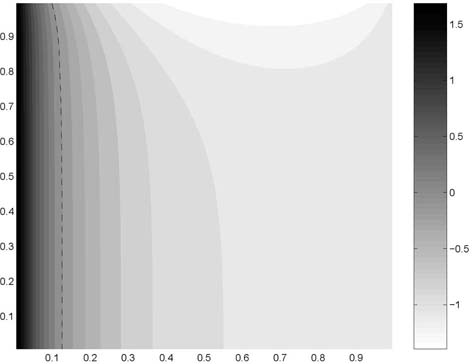

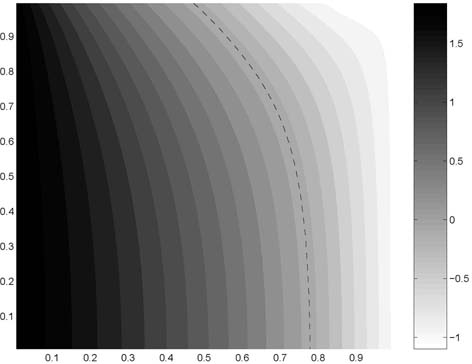

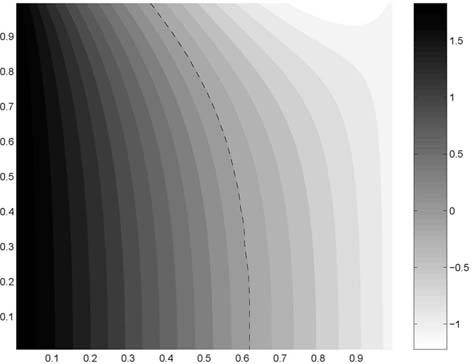

Figure 1: Temperature distribution on t = 0.0125   Figure 2: Temperature distribution on t = 0.0750 Figure 3: Temperature distribution on t = 0.0225   Figure 4: Temperature distribution on t = 1
